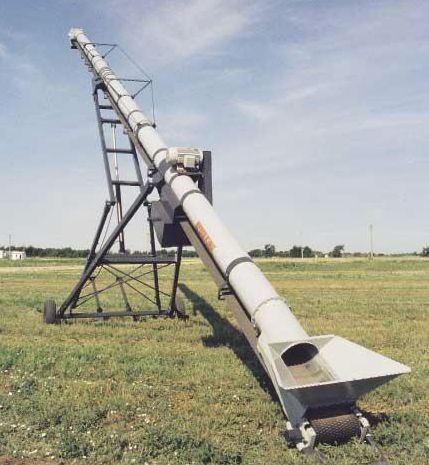

Portable Tubular Conveyor
Two sizes of tube diameter and belt sizes 10" diameter tube is stocked in standard lengths from 20 ' to 85 ' in 5 ' increments. Optional hydraulic lift, manual or electric winch on each size. Stationary units can be designed from pre-engineered modular components for longer application. Move up to 5,000 bu. per hour. 14" diameter tube delivers up to 9,000 bushels of grain per hour. Available in lengths from 30 ' to 85 ' in 5 ' increments.
10 inch BeltVeyor Tubular Conveyor
Std. Models 20 ft. through 85 ft. in 5' increments
Drive Types Electric, PTO, Gasoline or Hydraulic
Tube Diameter 10"
Belt Types PVC, Crescent surface
Lift Types Manual, Hydraulic
Capacities 5000 bu. Per hr. (when used with available accelerator)
Length 20 25 30 35 40 45 50 55 60 65 70 75 80 85
Discharge Height 9' 11 '7" 14'6" 16'8"
18'4" 20'7" 23'4" 25'10"
27'4" 29'10" 34'1" 36'10" 38'1" 40'6"
Electric Motor
HP Required 5 5 7.5 7.5 7.5 10 10 15 15 15 20 20 20 20
Axle Widths 8' 8' 8'
8' 8' 8' 8' 8' 8' 9'7" 9'7" 9'7" 9'7" 9'7"
Flex Hopper
- Fits on 10" and 14" BeltVeyors™
- Spring loaded and gives superior “flex” and ease when end-gate truck unloading.
